SALE ITEMS

Now introducing a new dimension in performance, flexibility and economy in diagnostics and surgery - the PRIMA series. Each microscope is built to perform under the most demanding of clinical and hospital environments. The PRIMA series offers an array of configurations to address all needs in dental

Combining superb optical performance with modern style and ergonomics, PRIMA is task master for your microscopy needs in diagnostics and surgery. PRIMA is a multi-talented system that can be easily configured for use where patients are to be supine or seated in an examination chair. Regions of interest come into sharp focus through our meticulously designed apochromatic optical system. Preconfigured systems can be further customized or extended with a host of accessories to suit your individual needs.

The PRIMA series is one of the first in diagnostic microscopy to introduce a suite of products equipped with an integrated LED (light emitting diode) illumination system capable of providing a measure of light intensity that is both bright and cool enough to address a host of diverse applications. This is made possible through innovation in illumination design.

primadnt

$4,495.00 (demo)

Microscope Specifications:

Binocular Tube

Ergonomic tiltable viewing tube 0░ - 210░ with converging optics

Apochromatic Magnichanger

0.4x, 0.63x, 1.0x, 1.6x, 2.5x

Eyepiece

10x/16mm with eye guards

Objectives

f = 250mm with manual/motorized fine focus adjustment

Light Source

27W LED

Built-in-Filters

Green & Yellow

Vertical Movement of Arm

600mm

Microscope Carriers

120░ Dental carrier

Accessories

Assistoscope, Beam Splitter with Camera Module, Eyepieces 12.5x/16mm, Objectives f: 200mm, f: 300mm

shoping cart

add to cart

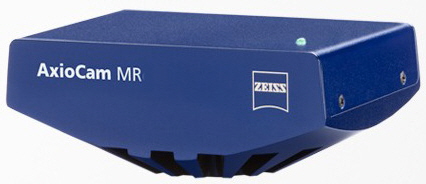

Axiocam MRm

Axiocam MRm

DEMO Price

$ 4,995.00

shoping cart

Monochrome Fluorescence Camera

Reliable image acquisition of low-intensity fluorescence samples, living organisms and the finest color graduations. The image quality delivered by this microscope camera exceeds that of many other monochrome and color CCD cameras.

For imaging applications in fluorescence microscopy, we recommend the AxioCam MRm. This monochrome version of the AxioCam MR provides maximum resolution without color interpolation and without a light-reducing filter mask.

1.4 Megapixel (1300 x 1030) resolution
12 Bit pixel depth
Dynamic range of 1:2200 for optimal sensativity
Peltier-cooling for minimized background noise
Fast live image modes for easy orientation on the specimen
Flexible readout modes for optimal capture conditions
Binning from 1 x 1 to 10 x 10 to increase camera sensitivity
Read-out of regions of interest (ROI) on the sensor to define important image sections
Integration times of 1 ms up to 60 s
C-mount interface for easy linking of camera to microscope
2/3'' sensor size for large field of view
FireWire / IEEE 1394 Interface for easy connection to PC
Trigger In/Out signal for control of external components
Intuitive imaging software with measuring functions for PC

Axiocam ICC5

DEMO Price

$ 3,500.00

shoping cart

Features/ Specifications:

Incl. Software driver. FireWire / IEEE1394 b/b interface cable, 5 m. Number of Pixels: 2452 (H) x 2056 (V) = 5.0 Mega pixel. Pixel size: 3.45 Ám x 3.45 Ám. Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11 mm). Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2452 x 2056 9 fps Readout of Sensor Sub- Regions ("ROI"): Adjustable Digitization: 12 Bit / Pixel Integration Time: 1 ms to 4 s. Interface (camera): IEEE1394b interface Interface (PC / board): IEEE1394b interface. Optical Interface: C-Mount.  Size / Weight: approx. 4.5 cm x 4.5 cm x 5.3 cm / 150 g. Registration: CE, FCC Class B, RoHS. Power Supply: via FireWire interface. Environmental conditions: +5┬░ ... +45┬░ Celsius, max. 80% relative air humidity, no condensation, free air circulation required. Supported operating systems: Windows XP x32 Prof. SP3 (ZEN lite), Windows 7 x32 Ultimate SP1 (ZEN lite), Windows 7 x64 Ultimate SP1 (ZEN lite/pro/system and AxioVision SE64 Rel. 4.8.3 SP1), Windows 8 x64 Prof.

IP_Premier_1

IP Features

NEW, Unopened

$ 3,995.00

Image-Pro Software

Image-Pro software includes the latest tools for scientific and industrial image  analysis and image processing. Capture, process, measure, share,  visualize and compare.

Image Analysis Starts with Image-Pro Software

Based on over 25 years of input from Image-Pro Plus software users, Image-Pro offers intuitive tools that make it  easy to capture, process, measure, analyze and share your images and  valuable data. The new Image-Pro offers 64-bit support, a  user-friendly interface, intuitive macros and app building tools, new  and improved ways to automatically segment, classify and measure  objects, and more tools for customizing your workflow.

shoping cart
