HD Video

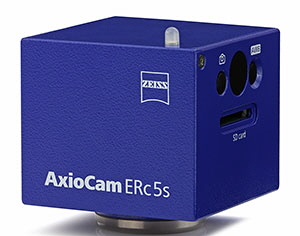

NEW AXIOCAM ERC5s rev. 2

ERc5S

The 5 mega pixels CMOS camera AxioCam ERc 5s is now in revision 2 and provides not only the simplest but also the most comprehensive introduction to the operation of a microscope camera.

This camera can be used as full-fledged micro camera (together with the microscopy software ZEN ) or as a substitute for an HD video camera with a fast and well resolved live image for training and routine applications.

Connect directly to an HD monitor for 1080p resolution and snap 5MP images via remote.

Connect to a router for wireless transmission/acquision to iPad or other mobile devices via free Labscope App.

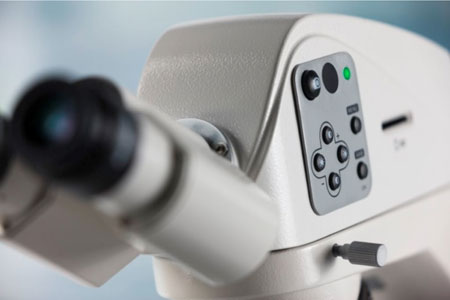

With Labscope, you transform your ZEISS Primo Star with integrated  HD camera into a WiFi-enabled imaging system. Be it in the laboratory,  university, school or even for your hobby - Labscope snaps images and  records videos of your microscopic samples, easier than ever. You can  create annotations and reports, perform image processing and save the  files to your Windows network, or simply share them with anyone.  Anywhere.

Moreover, with Labscope you can easily create a high-quality digital classroom and let your students learn in a fun way.

Download Labscope to your iPad now and test all features with the built-in virtual microscope!

app-store-logo

New Product

With the iPad App Labscope, you can display all the live images from  your connected PrimoStar microscopes. With one click, select a student's image.  You can record images and videos in the high resolution of 5 megapixels. Or, share your images, reports, and videos with others via e-mail,  social media, or cloud services. With Labscope, you save your images in  the ZEN compatible .czi file format including all metadata and a  separate annotation layer. Or select the space-saving .jpg format. You  can download Labscope from the Apple App Store.

wifi
ZEISS_PrimoStarHD_Head
ZEISS_PrimoStarHD_Head2

Use this camera with or  without a computer. Capture 5MP images directly onto the SD card and  stream the live image through the provided HDMI cable to a high  resolution monitor. Capture 1080p video files onto the SD card or  connect it to a computer with the USB cable and use it together with the Motic Images Plus 2.0 software.

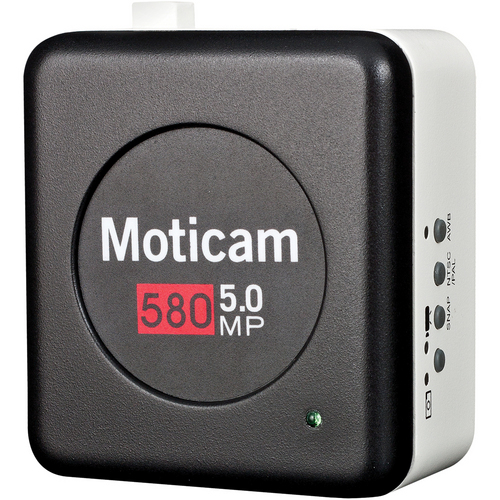

Moticam 580
  • Attachable digital C-Mount
  • Cmera5.0MP CMOS
  • sensor800x600 pixels live resolution through USB
  • HDMI output to monitor
  • RCA output to monitor
  • 5.0MP Still capture to SD card (interpolate up to 12MP)
  • 1080p Video capture to SD card
  • 1/3" Optical CalculationMini USB cable
  • HDMI cable
  • RCA cable
  • Multi function remote control
  • Switching Power supply with multi-country adapters
  • 12mm Focusable Lens (coated optical glass in metal casing)
  • 2 variable eyepiece adapters (30mm & 38mm)
  • Macrotube for specimens observation
  • Motic Images Plus 2.0 for PC and MAC OSXMotic
  • 4-dot precision calibration slide

Real Time Full Screen HD Video

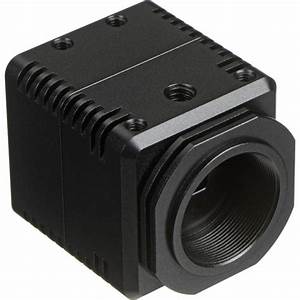

RealView HD-210D HD Microscope Camera
Real Time High Definition Single Chip CMOS Camera

The RealView high definition color microscope camera is the premier solution to viewing highly detailed images in a real time live mode. The high frame rate provides smooth motion while the 2.1 megapixel sensor provides a sharp, true full screen HD image.

hd_210_new_image

The RealView camera is especially effective in settings such as tumor review boards, clinical rounds, pathology labs, teaching environments and industrial inspection. Combine with the Real View HD RV-DR Magic Box for an unparalleled imaging capture and review system.

Ideal solution for a review board, teaching setting, or other collaborative environments.

  • · Exceptional detail 2.1 million pixel HD sensor
  • · 1920 x 1080 resolution of real time image
  • · Accurate color reproduction
  • · Preprogrammed for best brightfield color imaging
  • · Live HD image adjusts quickly to magnification or scene change
  • · No image smear, lag or jitter
  • · Eliminates eye fatigue from repetitive eyepiece viewing
  • · Enables collaborative diagnostics in group setting
  • · Allows entire class to view a live image on monitor or DLP projector
  • · 16x9 HD image fills the monitor screen
  • · Easy to connect with standard DVI output
  • · Standard "C" mount for simple connect
  • · 1/3" optical coupler recommended for microscope
  • · Dage-MTI service and support from industry leader
MagicBox

Combined with the RealView HD Camera series, “Magic Box” creates an unparalleled imaging capture and review system.

The HD-210 outputs images at a high frame rate (60 FPS) for smooth real time live motion Selectable between 1080p/60, and 1080i/30 Connects simply with DVI cable or HDMI converter cable No PC or software require.
