Axio Scope A1

New modularity
Axio Scope is as individual as the applications that you use it for. You can customize your stand from fi ve upper parts, three lower parts and two vario columns. For simple or more complex tasks. For transmitted-light, refl ectedlight or fl uorescence. What is important is that you no longer invest in functions that you don’t even use – a tangible advantage for your budget.

Economical upgrading
Simpler and less costly – the modular interface concept of Axio Scope makes future upgrading quite simple. This is economically attractive as you can install many of the components yourself without waiting for expensive service support.

Versatile range of uses
Axio Scope provides a range of uses which are as versatile as the tasks in institutes and

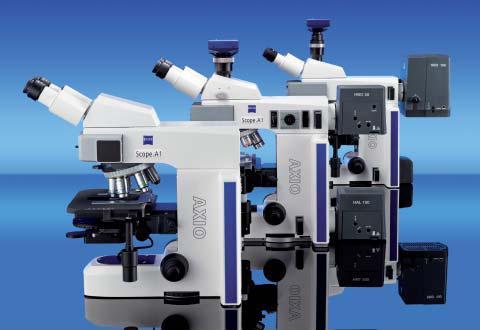

Axioscope A1 Cover3

laboratories. They range from simple routine applications to more complex research projects. From anatomy to cytology. From transmitted light applications to multi-fl uorescence labelling. From the thinnest histological section to a specimen 380 mm thick.

The upper parts

I. For pure transmitted-light applications Equipment: objective turret with 6x BF

II. For standard fluorescence applications Equipment: objective turret with 3x DIC/3x BF, standard interface for HBO 50, HBO 100, HXP 120, Colibri etc.

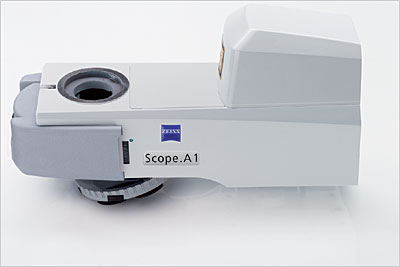

III. For LED fluorescence applications Equipment: objective turret with 3x DIC/3x BF, integrated illumination that can accept 4 different LED modules, synchronized switching with the reflector turret, long operating life, highly economical

Oberteil_I
Oberteil_II
Oberteil_III

The lower parts

For many routine applications Illumination: LED (Fixed-Koehler), screwed in directly beneath the condenser carrier.

All standard applications Illumination: 50 W reflector light, koehlerable beam path with field diaphragm and aperture diaphragm, filter slider and 6-position filter wheel.

For demanding transmitted-light applications with high-intensity illumination Illumination: 100 W halogen, koehlerable beam path with field diaphragm and aperture diaphragm, filter slider and 6-position filter wheel.

Axioscope LED Base
B_Stativ
Axioscope 100w Base

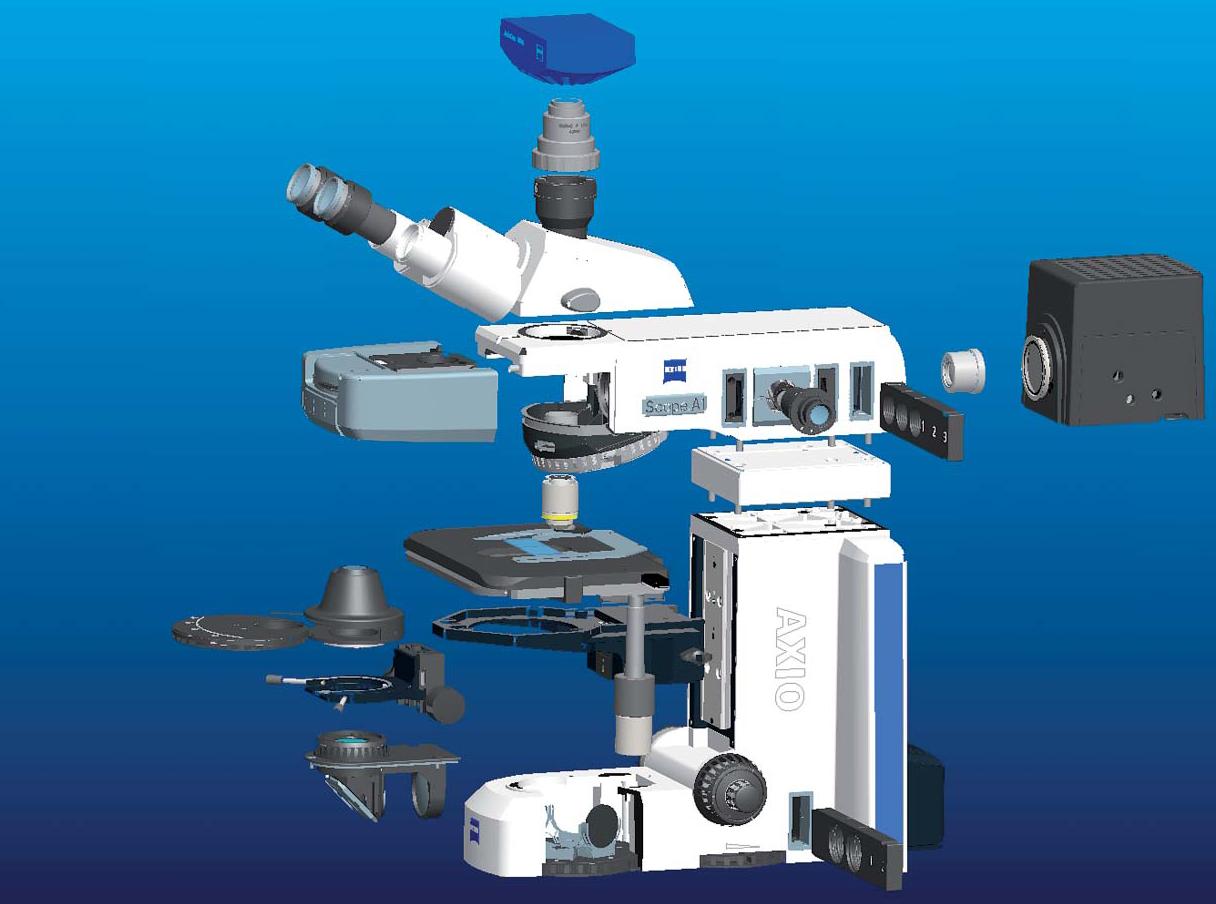

Exploded view

Click on a module of interest for more details.
