Educational

Carl Zeiss introduces the "Primo Star HD" with integrated camera and iPad connectivity.

With the Built-In HD Camera you can:
  • Record and store images directly to an SD card
  • Connecting to a monitor or TV via HDMI
  • Connect the camera via USB to a PC to capture your images via software (ZEN or AxioVision)
  • Connect the camera to your wireless network (LAN) and use with the new software Labscope on your iPad
ZEISS_PrimoStarHD_Head ZEISS_PrimoStarHD_Head2

Fixed-Koehler versions:
for standard education

Primo Star packages 1-3 – these microscopes mark the new standard in education. They have all the important functions and are very simple to operate. In addition, we offer the stage with left-hand operation for all those who wish to use the microscope with their left hand and write or draw with their right hand. The most economical solution in the long-term in this area is variant 3 with LED illumination. If a constant color temperature is important to you and you intend to use Primo Star for a long time, then this is the instrument to choose – primarily because of its extremely long service life and low operating costs.

Full-Koehler versions:
For standard microscope work at the highest level

Packages 4-8, which are used to teach the classic Koehler method, are suitable for higher level education. These Primo Star packages also have a somewhat larger field of view, the option of left-hand operation and a phototube for connection to a digital or video camera. They are also available with the cost-efficient LED illumination as an option.

 ZEISS PRIMOSTAR HD

ZEISS_PrimoStarHD

Zeiss  Primostar with integrated HD camera
PrimoStar

Package
no

Stage Drive

F.O.V.

Hal

LED

Fixed Koehler

Full Koehler

Photo tube

Binoc tube

40 Ph2

1

Rt

18

X



X





X



2

Lt

18

X



X





X



3

Rt

18



X

X





X



4

Rt

20

X





X



X



5

Rt

20

X





X

X





6

Lt

20

X





X

X





7

Rt

20



X





X





8

Lt

20



X



X

X





9

Rt

20

X





X



X

X

10

Rt

20

X





X

X



X

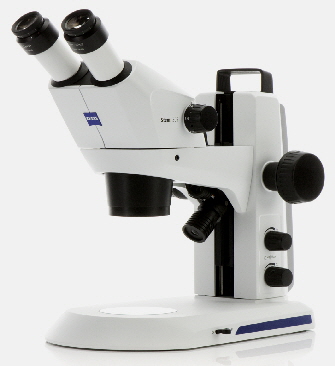

ZEISS Stemi 305 - Your Compact Stereo Microscope with Integrated Illumination and Documentation

Stemi 305 is your compact greenough stereomicroscope with 5:1 zoom for biological education, labs and industrial production environments. Observe your samples in true color, 3D - no preparation required. Profit from this easy-to-use microscope, where everything is integrated: long-living LED illumination, reflected and transmitted light illuminations and documentation, too. Choose between the phototube to have access to all ZEISS microscope cameras or the integrated 1.2 Megapixel Wifi camera to connect several microscopes and share your images via WLAN.
stemi305-edu-01

Stemi 305















Stemi 305 Trinoc















Stemi 305 Cam



PL 10x/23 foc.



PL 16x/14 foc.



PL 25x/10 foc.



Front Optics

FWD

Total Magnification



Total Magnification



Total Magnification







Min Zoom   Max Zoom

Object Field (mm)

Min Zoom   Max Zoom

Object Field (mm)

Min Zoom   Max Zoom

Object Field (mm)

0.5x

185

4x - 20x

57.5 - 11.5

6.4x - 32x

35 - 7.0

10x - 50x

25.0 - 5.0

.75x

128

6x - 30x

38.3 -7.7

9.6x - 48x

23.3 - 4.7

15x - 75x

16.7 - 3.3

1x (w/o lens)

110

8x - 40x

28.8 - 5.8

12.8x - 64x

17.5 - 3.5

20x - 100x

12.5 - 2.5

1.5x

56

12x - 60x

19.2 - 3.8

19.2x -96x

11.7 - 2.3

30x - 150x

8.3 - 1.7

2.0x

43

16x - 80x

14.4 - 2.9

25.6x - 128x

8.8 - 11.8

40x - 200x

6.3 - 1.3
