Compact and ergonomic design assures easy, durable use for observation of metallurgical samples, electronic components, and metal parts.

Suitable for brightfield and simple polarized light observation.

Fixed stage design provedes stable control even with heavy samples.

s infinity plan achromatic objectives provide bright, high resolution images with long working distances and high N.A. values.

6V 30W reflected light illuminator with a condenser and lamp centering mechanism.

Each MEC2 is supplied with a trinocular head and phototube as standard equipment.

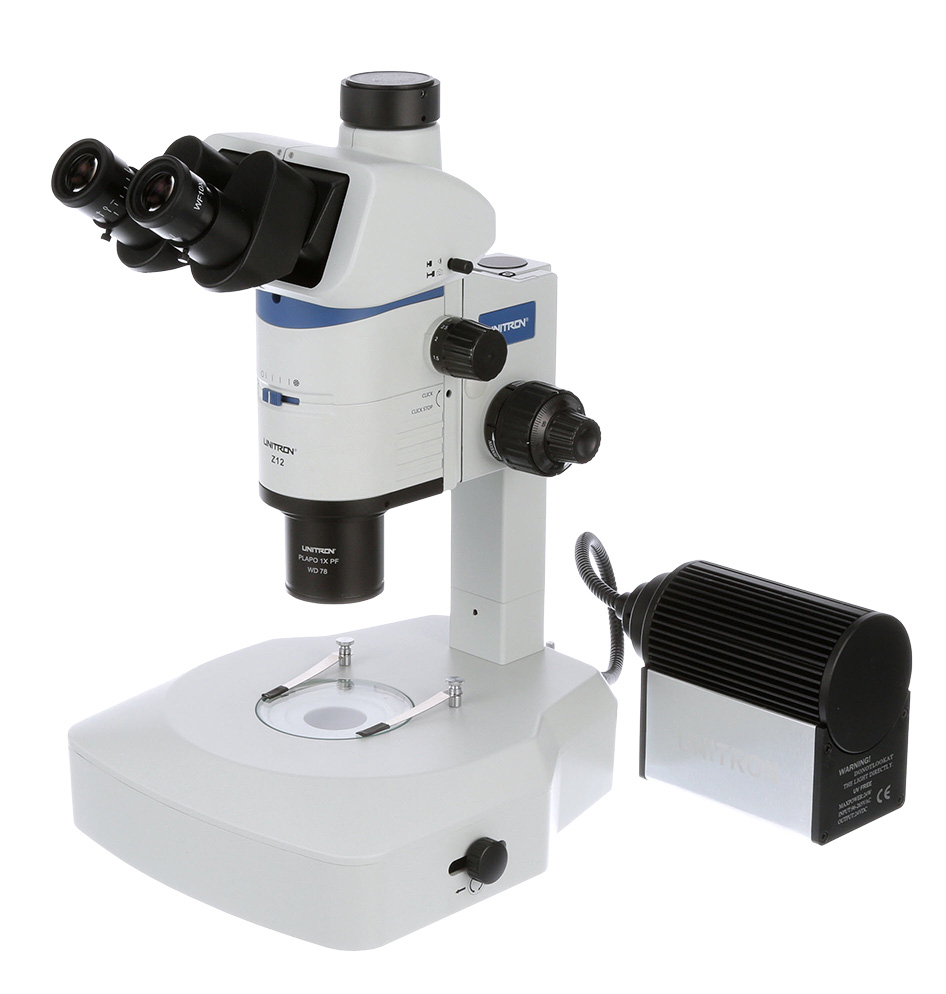

Unitron Z12-Zoom Stereo

The new Z12 zoom stereo microscope from UNITRON features a Common Main Objective design, a 12:1 zoom ratio and a massive 8X to 400X magnification range.

The Z12 includes many features typically found in higher priced microscopes. Three new stands suit the most demanding applications: plain focusing stand, transmitted light base with sliding/tilting mirror, and a slim profile LED transmitted light base. The color-balanced LED light sources give bright illumination to the specimen, and are highly cost effective (low energy consumption and long lifespans). A 5°-45° tilting trinocular observation head offers ergonomic viewing comfort that is customizable to the observer. Its apochromatic objectives deliver crisp color reproduction and high resolution of fine structures, and the trinocular port is ready to accept a digital microscopy camera for imaging. Click-stop zoom positions allow the observer to quickly return to a specific magnification setting, thus saving time and increasing reproducibility.

The Z12 addresses a wide variety of applications from assembly and quality control in the industrial markets, to stem cell and embryo selection in the life sciences. The new UNITRON Z12 delivers both performance and high-end features at a value-conscious price point.

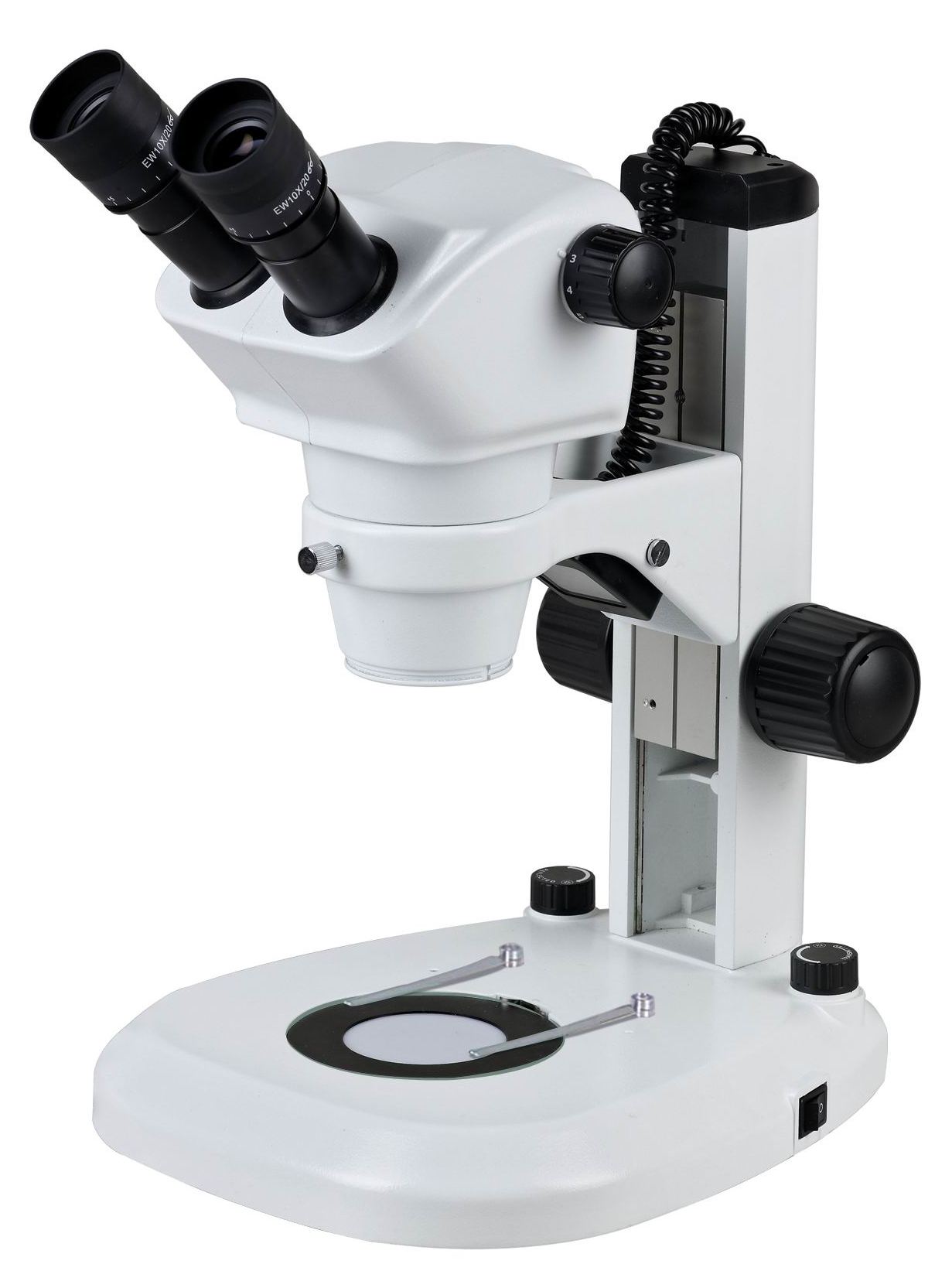

360’ rotatable w/45’ eyetubes; Binocular model #13100


360’ rotatable w/45’ eyetubes; Trinocular model #13130


52-75mm, Dual Diopter Adjustment +/- 5


WF 10x/22mm


Optional: 15x/16mm, 20x/12.5mm


8x-50x w/ 10x WF eyepieces


Transmitted and Reflected; LED Illumination


Digital Camera and Software

boom_stand3357 LED_Ring_Light
