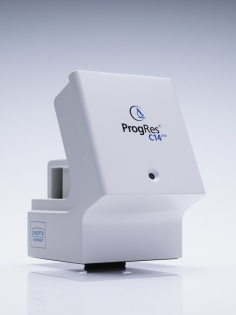

	Digital Microscope Camera ProgRes® C14 Plus


	Proven Image Quality and Precision in True Color

	Versatile Camera for Highest Demands The ProgRes® C14plus is a multi-purpose camera to handle most demanding imaging tasks. It delivers images up to a resolution of 12.5 megapixel using Microscanning technology. Different pixel clock rates guarantee fast live image and high image quality in the captured image. The microscope camera ProgRes® C14plus is thermo-electrically cooled and has a nitrogen-flushed sensor capsule.

	Precision in Real Color Patented Color-Co-Site-Sampling takes exact color information of your specimen in each of the three color channels for true color images without interpolation. Digitization is done in 14Bit per color channel. The images reflect even finest stuctures free of moire effects.

	Easy Operation The image capture software CapturePro included in delivery offers comprehensive functionality with intuitive operation. Equipped with IEEE1394 Firewire™ and C-Mount, the camera ProgRes® C14plus conveniently connects to any computer and microscope.


	Digital Microscope Camera ProgRes® C14plus - Technical Data

	Sensor 1.4 Megapixel CCD, Color, 2/3" Active area 8.8 mm × 6.6 mm Sensor resolution 1360 × 1024 Pixel Pixel size 6.45 μm × 6.45 μm A/D conversion 3 × 14 Bit RGB Pixel clock 12 MHz / 24.5MHz Dynamic range 69 dB / 67 dB (at 10 ms ) Max. exposure time 600 s Analogue gain 1x ... 8x Max. frame rate 32 fps (680 × 512) Image resolution 1360 × 1024 HFRM 680 × 512 and 340 x 256 Binning 3x and 5× True color resolution (color-co-site-sampling) 4080 x 3072 und 2720 x 2048 Cooling Peltier, fan, hermetically sealed sensor capsule Trigger Input and Output Digital Interface IEEE1394a Firewire IR-Cut-off filter fixed in C-Mount Optical Interface C-Mount (0.63× TV Adaptor recommended)
