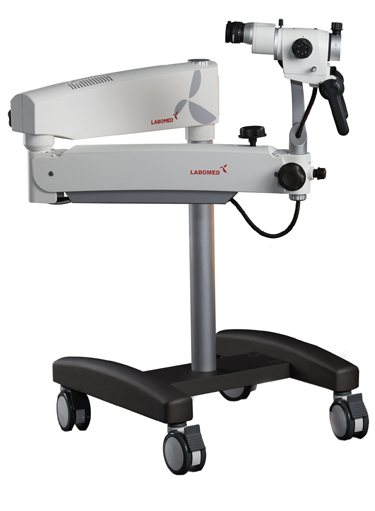

PRIMA GN Operating Surgial Microscope GYN/OBS:

PRIMA microscope systems offer a brand new dimension in performance, flexibility and economy in diagnostics and surgery. PRIMA packs a high level of performance in its small package. Its compact design is tailored to optimize use of limited operating room space. From outpatient clinics to sugeries, PRIMA offers flexibility and performance to serve every clinical requirement in the field of gynecology.

primagn

Combining superb optical performance with modern style and ergonomics, PRIMA is task master for your microscopy needs in diagnostics and surgery. PRIMA is a multi-talented system that can be easily configured for use where patients are to be supine or seated in an examination chair. Regions of interest come into sharp focus through our meticulously designed apochromatic optical system. Preconfigured systems can be further customized or extended with a host of accessories to suit your individual needs.

PRIMA incorporates a highly efficient 50W LED coupled with a patented optical design and a 6mm fiber-optic/liquid light guide that come together to deliver a cool light with lumens equivalent to a 150W halogen bulb. The LED switches off automatically when the suspension arm is moved to its top-most, or park position. A rotary potentiometer control is conveniently located above the observation head to provide smooth, flicker-free variation in illumination intensity.

Microscope Specifications:

Eyepiece

WF 10x/16mm with eye guards

Objectives

f = 300mm, manual fine focus

Magnifications

0.4x, 0.6x, 1.0x, 1.6x, 2.5x

Light Source

27W LED, up to 60,000 hours of LED lamp life.

Built-in-Filters

Green & Yellow

Vertical Movement of Arm

600mm

Microscope Carriers

Straight carrier

Accessories

Assistoscope, iVu Camera Module, Double Beam splitter, 0-210° tiltable ergo tube, eyepiece WF 12.5x/16mm
