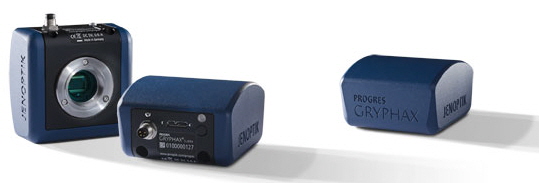

Progres Gryphax Subra :

Key Features:
Full HD record at video speed
USB3.0 interface
5.5x5.5 µm pixel size.
2/3” sensor.
12 Bit.

Camera:

Camera resolution in LIVE mode : full HD 1920x1080 (30fps)
Camera resolution in Record mode : Full HD 1920x1080 (30 fps)
Exposure time min.-max : 52 µs – 2sec.
Gain : max. 8
A/D conversion : 12 Bit (4096 grey values)
Absolute sensitivity threshold : 13.5e
Saturation capacity : 8000e
Dynamic range : 56 dB
Filter : IR cut/ optional clear-glass
Hardware trigger : Out
Power switch : Yes
Optical interface : C-mount
Power consumption : appr.3W
Dimensions : 85x75x50mm
Weight : appr.400g
Storage Options : -20°C up to +35°C non condensing
Operating temperature : +10°C up to +35°C (non condensing)
Warranty : 24 months

Image Sensor :

Sensor type/sensor equare/diagonal : CMOS 2/3”/
Pixel dimensions : 5.5x5.5 µm
Color or monochrome : color.
Progressive scan / Global shutter
Full sensor resolution : 2048x1084

System Requirements:

Data interface : USB3.0 no extra power supply needed.
Software (included in the package) : Progres Gryphax
Export to external software : via analyze function of progress Gryphax.

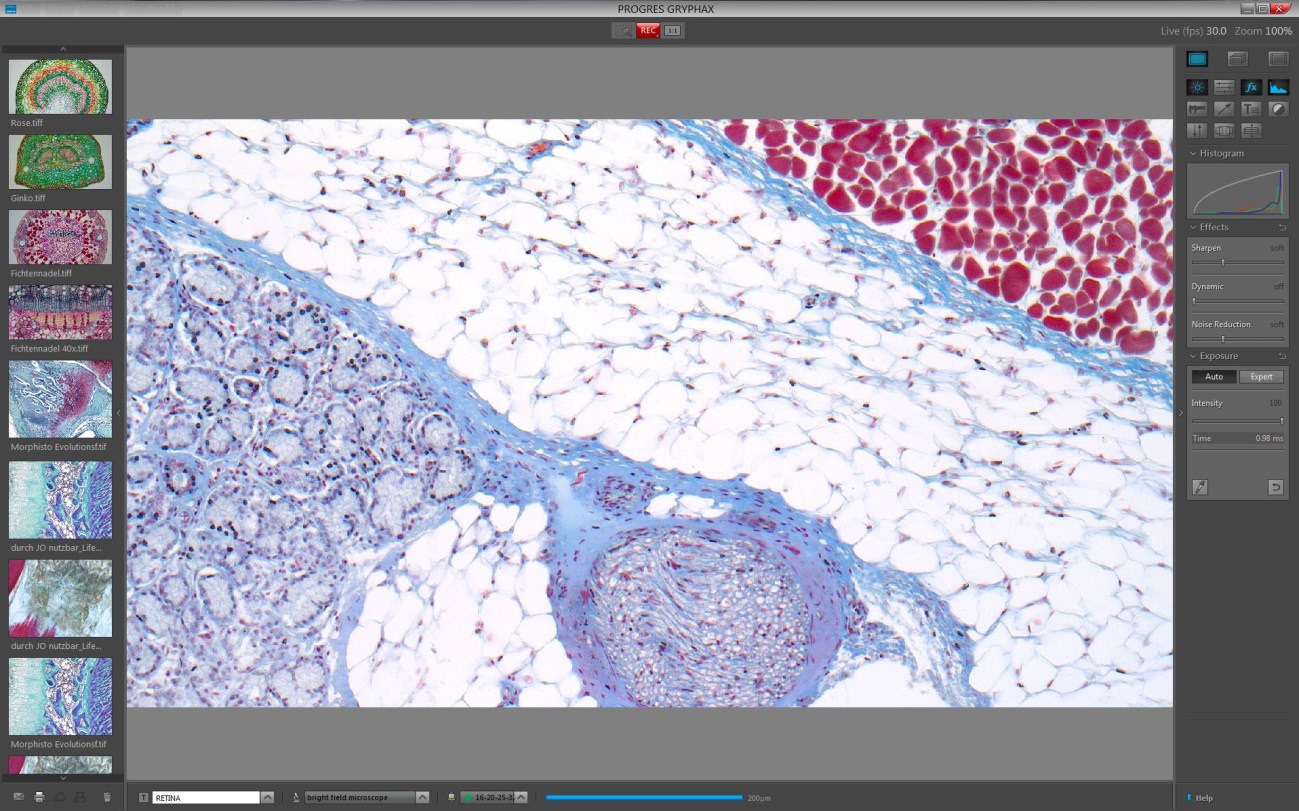

 PROGRESS GRYPHAX Software features :

Automatic & fast exposure control
Live Multifocus / Extended depth of Focus
Live Panorama / image stitching
Multi-Channel Fluorescence
HD Video recording
Time-lapse / image series
Real-time histogram
Real time image enhancements : sharpness, noise, dynamic, colors.
Measurements with text annotations and arrow marking
External image analysis image export
Individual device configuration
Image comparison
Optional status bar/scale/device name.
