Prima ENT

Now introducing a new dimension in performance, flexibility and economy in diagnostics and surgery - the PRIMA series. Each microscope is built to perform under the most demanding of clinical and hospital environments. The PRIMA series offers an array of configurations to address all needs in dental

Combining superb optical performance with modern style and ergonomics, PRIMA is task master for your microscopy needs in diagnostics and surgery. PRIMA is a multi-talented system that can be easily configured for use where patients are to be supine or seated in an examination chair. Regions of interest come into sharp focus through our meticulously designed apochromatic optical system. Preconfigured systems can be further customized or extended with a host of accessories to suit your individual needs.

The PRIMA series is one of the first in diagnostic microscopy to introduce a suite of products equipped with an integrated LED (light emitting diode) illumination system capable of providing a measure of light intensity that is both bright and cool enough to address a host of diverse applications. This is made possible through innovation in illumination design.

PrimaENT2

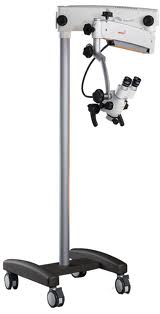

PRIMA ENT microscope stand with LED Cold light Coaxial illumination system includes;

Binocular Tube

Straight, f = 170mm focal length

Apochromatic Magnichanger

0.4x,0.63x,1.0x,1.6x & 2.5x

Eyepiece

WF 10x/16mm with eye guards

Objectives

f = 250mm manual fine focus

Light Source

27W LED

Built-in-Filters

Green & Yellow

Vertical Movement of Arm

600mm

Microscope Carriers

120° ENT carrier

Accessories

Assistoscope, Xpert Vu Camera Module, Double Beam splitter, 0-210° tiltable ergo tube, eyepiece WF 12.5x/16mm
