Prima DNT
labomed logo2

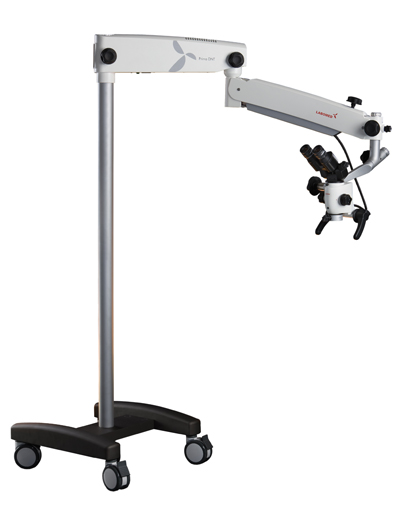

Now introducing a new dimension in performance, flexibility and economy in diagnostics and surgery - the PRIMA series. Each microscope is built to perform under the most demanding of clinical and hospital environments. The PRIMA series offers an array of configurations to address all needs in dental

Combining superb optical performance with modern style and ergonomics, PRIMA is task master for your microscopy needs in diagnostics and surgery. PRIMA is a multi-talented system that can be easily configured for use where patients are to be supine or seated in an examination chair. Regions of interest come into sharp focus through our meticulously designed apochromatic optical system. Preconfigured systems can be further customized or extended with a host of accessories to suit your individual needs.

The PRIMA series is one of the first in diagnostic microscopy to introduce a suite of products equipped with an integrated LED (light emitting diode) illumination system capable of providing a measure of light intensity that is both bright and cool enough to address a host of diverse applications. This is made possible through innovation in illumination design.

primadnt

An optional  compact camera module with built-in beam splitter extends the ergonomics of the Xpert systems.Configured to provide multiple outputs i.e. Composite Video, S-Video, and USB for PC connectivity. Xpert Vu demonstrates full compatibility.

Microscope Specifications:

iVu S5 Mounted to Prima

$4,495.00 (demo)

shoping cart

add to cart

Binocular Tube

Ergonomic tiltable viewing tube 0° - 210° with converging optics

Apochromatic Magnichanger

0.4x, 0.63x, 1.0x, 1.6x, 2.5x

Eyepiece

10x/16mm with eye guards

Objectives

f = 250mm with manual/motorized fine focus adjustment

Light Source

27W LED

Built-in-Filters

Green & Yellow

Vertical Movement of Arm

600mm

Microscope Carriers

120° Dental carrier

Accessories

Assistoscope, Beam Splitter with Camera Module, Eyepieces 12.5x/16mm, Objectives f: 200mm, f: 300mm
