PCO sCMOS

pco.panda 4.2

Compact design, strong sCMOS performance

The pco.panda 4.2┬ heralds the start of a new sCMOS camera generation. ┬ What exactly does that mean for you? Universal application options thanks to an ultra-compact camera housing! Power and fast data transfer occur via a single USB 3.1 cable. External power supplies are redundant.

You benefit from excellent image quality provided by the 16-bit sCMOS sensor with its high resolution and 6.5 x 6.5 um▓ pixel sizeHigh quantum efficiency and low readout noise are guaranteed.

Advantages of pco.panda 4.2 include flexible design with the latest sCMOS technology enabling you to use it in a wide range of applications.

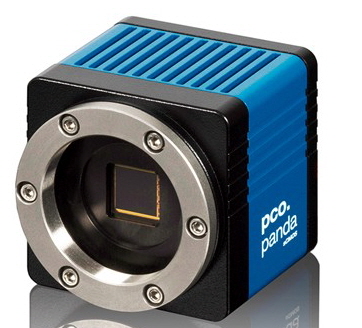

pco.panda_front45

pco.panda 4.2 bi

  • monochrome or color sensor
  • ultra-compact size: 65 x 65 x 65 mm│
  • latest 16 bit sCMOS sensor technology
  • high resolution 2048 x 2048 pixel
  • pixel size: 6.5 x 6.5 Ám▓
  • low readout noise 2.1 e- med
  • dynamic range of 21 500 : 1
  • quantum efficiency up to 80 %
  • exposure times from 10 Ás to 5 s
  • maximum frame rate 40 fps @ full resolution
  • rolling shutter
  • USB 3.1 Gen1 interface
  • power over USB

High resolution back illuminated sCMOS camera

When every single photon counts, pco.panda 4.2 bi brings you a decisive advantage. Our new back illuminated (bi) sensor can provide you with a quantum efficiency of up to 95 %. This makes the camera perfect for demanding lighting conditions, even without active cooling.

The high resolution and┬ 6.5 x 6.5 ╬╝ um▓ pixel size guarantees you greater detail diversity and highly qualitative images. The USB 3.1 interface provides direct power delivery via the USB cable. Our latest developments in sCMOS┬ technology and compact dimensions make the pco.panda 4.2 bi ideal for countless applications in microscopy and life science.

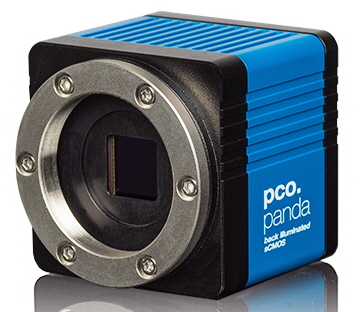

pco.pandabi_frontleft
  • ultra-compact size: 65 x 65 x 65 mm│
  • back illuminated 16 bit sCMOS sensor technology
  • high resolution 2048 x 2048 pixel
  • pixel size: 6.5 x 6.5 Ám▓
  • quantum efficiency up to 95 %
  • maximum frame rate 40 fps @ full resolution
  • rolling shutter
  • USB 3.1 Gen1 interface
  • power over USB
