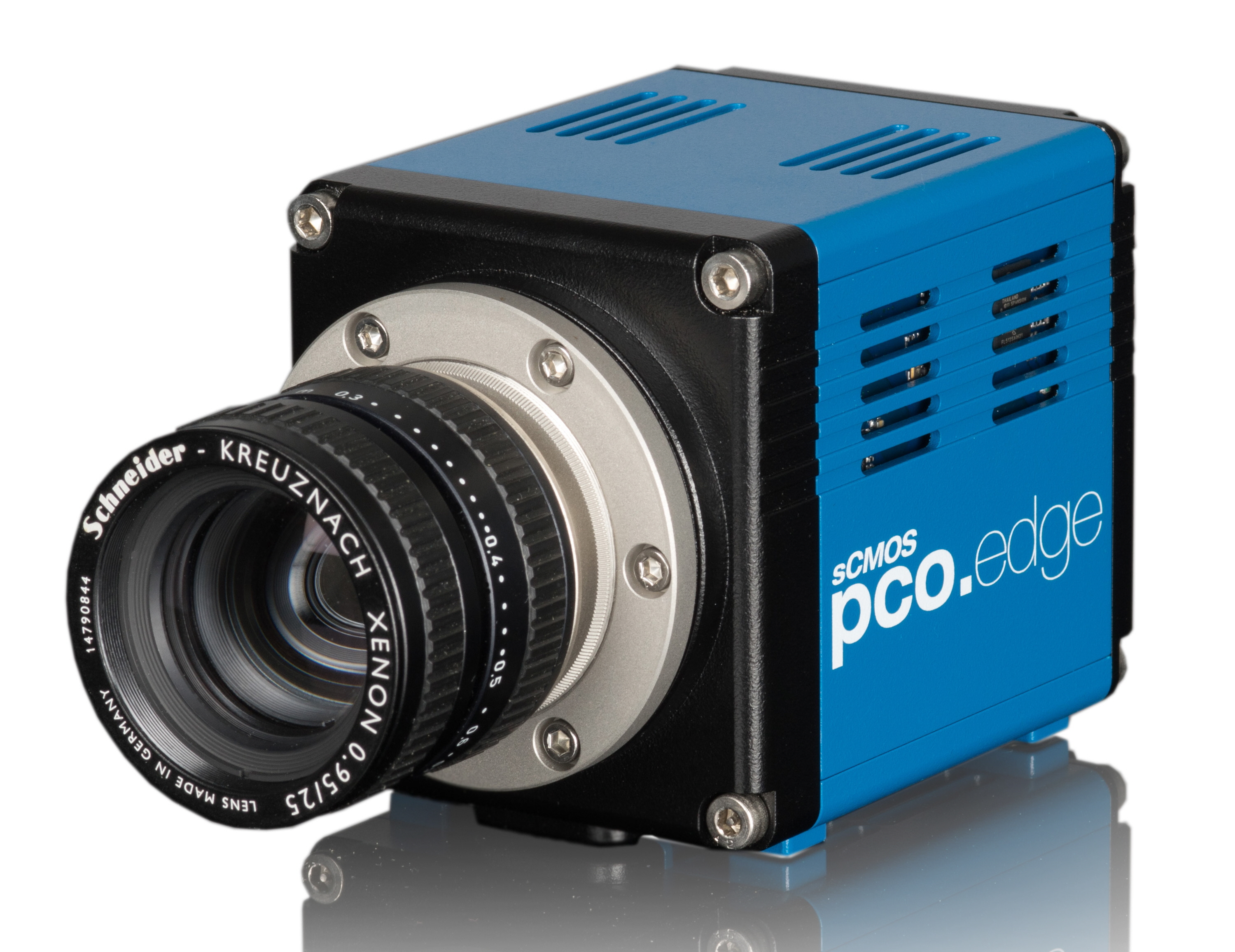

pco.edge 3.1
Groundbreaking sCMOS technology for outstanding image quality

Product Data Sheet

The pco.edge 3.1 is equipped with an innovative scientific CMOS sensor providing crisp images and precise measurements.
The pco.edge 3.1 camera system is designed for users who require high resolution, high frame rates, best 16 bit dynamic range, good quantum efficiency, selectable shutter options or optionally a color sensor.

• thermal stabilization at +5 °C
• extreme low readout noise of 1.1 e- med
• high resolution of 2048 x 1536 pixel
• dynamic range of 27 000 : 1
• quantum efficiency up to 60%
• rolling shutter: 500 µs to 2 s
• global shutter: 20 µs to 100 ms
• monochrome or color sensor
• maximum frame rate 50 fps
• USB 3.0 interface
• small form factor: 102 x 79 x 70 mm
