Camera Couplers

C Mount Camera Couplers

Optem Direct Mounts

Compact, one-piece design is optimized for use with most contemporary,
full-size microscopes that feature removable tri-ocular tube components,
yielding access to the intermediate image plane.

• Wide range of magnifications to fit wide variety of camera formats
• Compatible with C-Mount and Bayonet Cameras
• Excellent Image quality with minimal distortion
• Low-profile design promotes ergonomics and bench-top  image stability.
• Internal fine-Focus adjustment
• Precision optics and internal focusing afford crisp imaging and system flexibility

Digital Camera Couplers

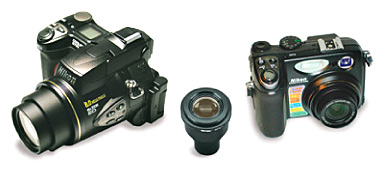

Digital Camera Adapters

• Can be mounted easily into a variety of common microscope
  photoports, phototubes or eyepiece ports
• Feature a 28mm, 37mm, or 43mm (M37 x 0.75) front end thread for
  easier camera integration.
• Quik-Connect Kits ensure a quick one-stop solution For the most
  popular camera models.
• Compatible with Optem® Micro-inspection Lenses

NOTE: Some digital cameras may require additional lens-tube adapters (to accommodate protruding zoom lenses) and/or step down rings (for non-standard thread variations). Consult your camera owner’s manual  and/or refer to one of the recommended camera supply web sites below.

Connect a multitude of major brand digital cameras to most any
compound or stereo microscope for quick and easy digital imaging.
